ImageIR® 8100
High-resolution, radiometrically calibrated infrared cameras with a very good price/performance ratio - these are the new SWIR cameras from the ImageIR® series. They are suitable for temperature measurements from 300 °C and operate in the short-wave infrared range.
Cooled focal plane array photon detector operating in snapshot mode with (640 × 512) IR pixels
Cost-effective, compact optics design with high imaging quality
The compact design and low weight predestine the SWIR thermal imaging camera for integration into existing system environments
The accompanying Software Development Kit (SDK) provides easy access to all camera functions
High resolution thermal images for temperature measurement
Flexible setting of temperature measurement ranges beyond factory calibration ranges
Wide temperature measuring range up to 1,700 °C
Highly accurate and repeatable measurements
Precise detection of smallest temperature differences
Smaller pixel sizes avoids geometrical measurement errors
Specialist for Measurement on Metallic Surfaces
The high-resolution ImageIR® 8100 and ImageIR® 9100 are very compact thermographic cameras designed for stationary use, which work in the short-wave spectral range and are used preferably for contactless temperature measurement on metal surfaces because of their spectral characteristics.
Integration into Existing System Environments
Compact design and low weight make the ImageIR® 8100 and ImageIR® 9100 SWIR infrared cameras ideal for integration into existing system environments. With the associated Software Development Kit (SDK), all functions of the cameras are easily accessible. Due to their robustness, they can also be used in adverse environmental conditions, for example in industry.
Long-term Stability
The cameras do not require a mechanical cooler and are suitable for maintenance-free continuous operation. With the new SWIR cameras from InfraTec, users thus receive thermographic cameras that are equipped with high measurement accuracy as well as very good short- and long-term stability.
Smal Pitch Dimension
They have a pixel pitch of only 5 μm, resulting in a small detector chip diagonal. This in turn allows a comparatively affordable and compact optical design with high imaging quality. In combination with radiometric calibration, brilliant thermographic images with high geometric and thermal resolution can thus be achieved in both formats. In SXGA format, even the smallest details on large-area objects can be optimally resolved. Adaptation to real measurement scenarios is very convenient thanks to the interchangeable lenses with different focal lengths.
Technical Specifications of ImageIR® 8100 Series
| Spectral range | (0.9 ... 1.7) µm |
| Pitch | 5 µm |
| Detector | InGaAs |
| Detector format (IR pixels) | (640 x 512) |
| Image recording principle | Snapshot |
| Readout mode | ITR / IWR |
| Temperature measuring range | (300 ... 850) °C, up to 1,700 °C* |
| Measurement accuracy | ± 3 % |
| Temperature resolution at 30 °C | Better than 1 K (Temperature resolution at 350 to 1,000°C) |
| Frame rate | Up to 237 / 445 / 793 / 2,958 Hz |
| Window mode | Yes* |
* Depending on model
** In selected measurement ranges
Configure Your Camera System
Each measurement or testing task has its own characteristic basic conditions. For getting optimal results camera, detector and lens have to be perfectly matched to one another. The field of view calculator helps you to determine the appropriate combination.

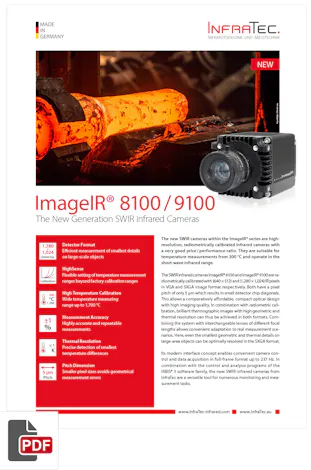

Product Flyer
Get all the information you need at a glance in our product flyers
Industries & Applications for the SWIR Infrared Camera Series ImageIR® 8100
Some thermographic measurement tasks are characterised by very high temperatures and challenging materials. They can only be solved with a high degree of uncertainty in the medium (MWIR) and long-wave (LWIR) infrared range, with regard to the occurrence of measurement errors. InfraTec‘s SWIR infrared cameras ImageIR® 8100 and ImageIR® 9100 offer new possibilities. They expand the portfolio of thermographic temperature measurement and allow for example emissivity-optimised measurements of temperatures on metallic surfaces.
Further Application Areas
High-temperature applications (for example hot forming processes, heat treatments)
Metal industry (for example welding processes, press hardening, brazing, forging)
Additive manufacturing and laser applications
Ceramics and glass industry
Signature recognition and measurement
